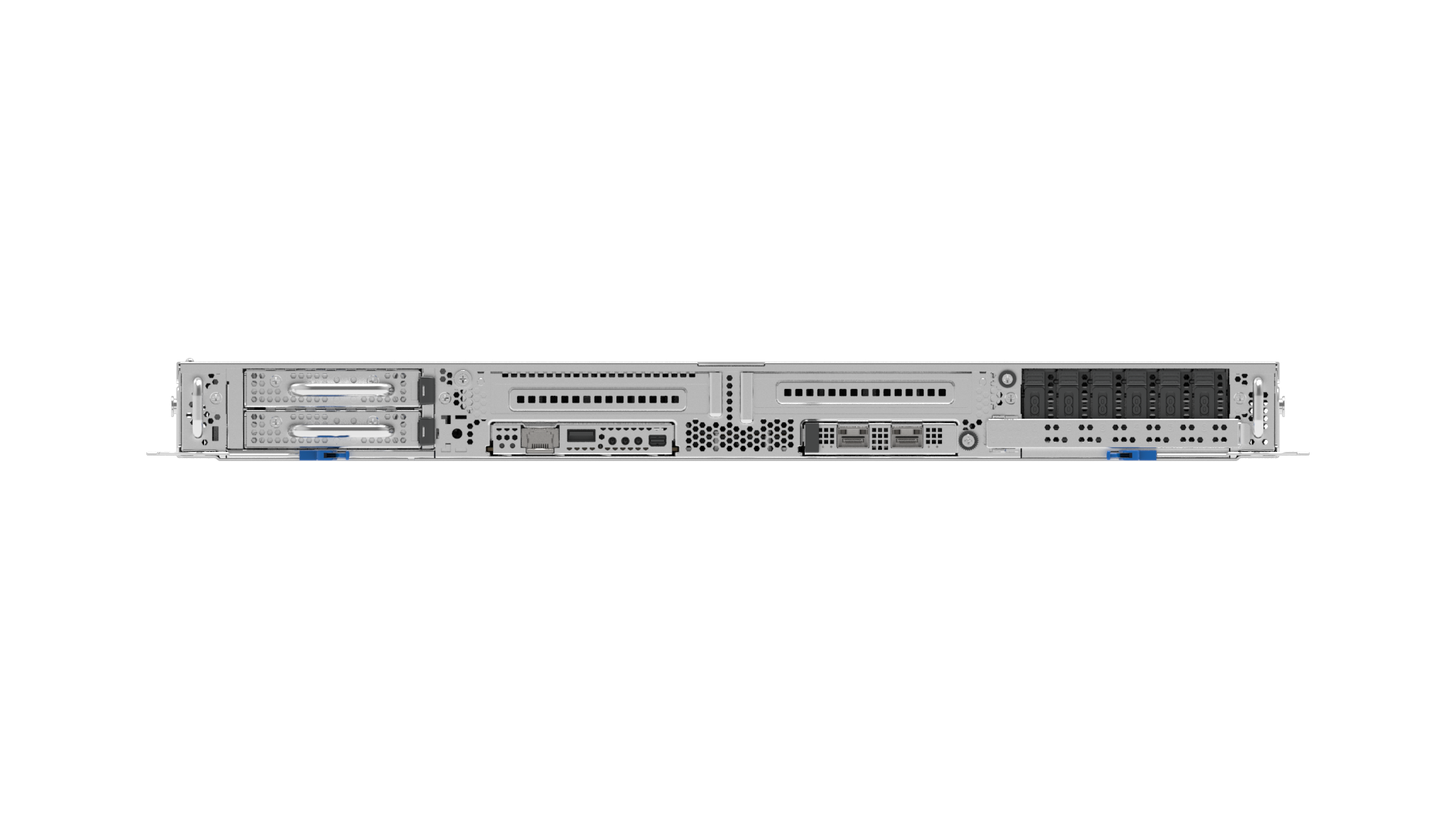

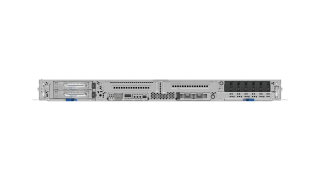

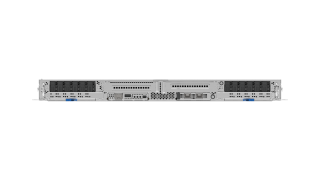

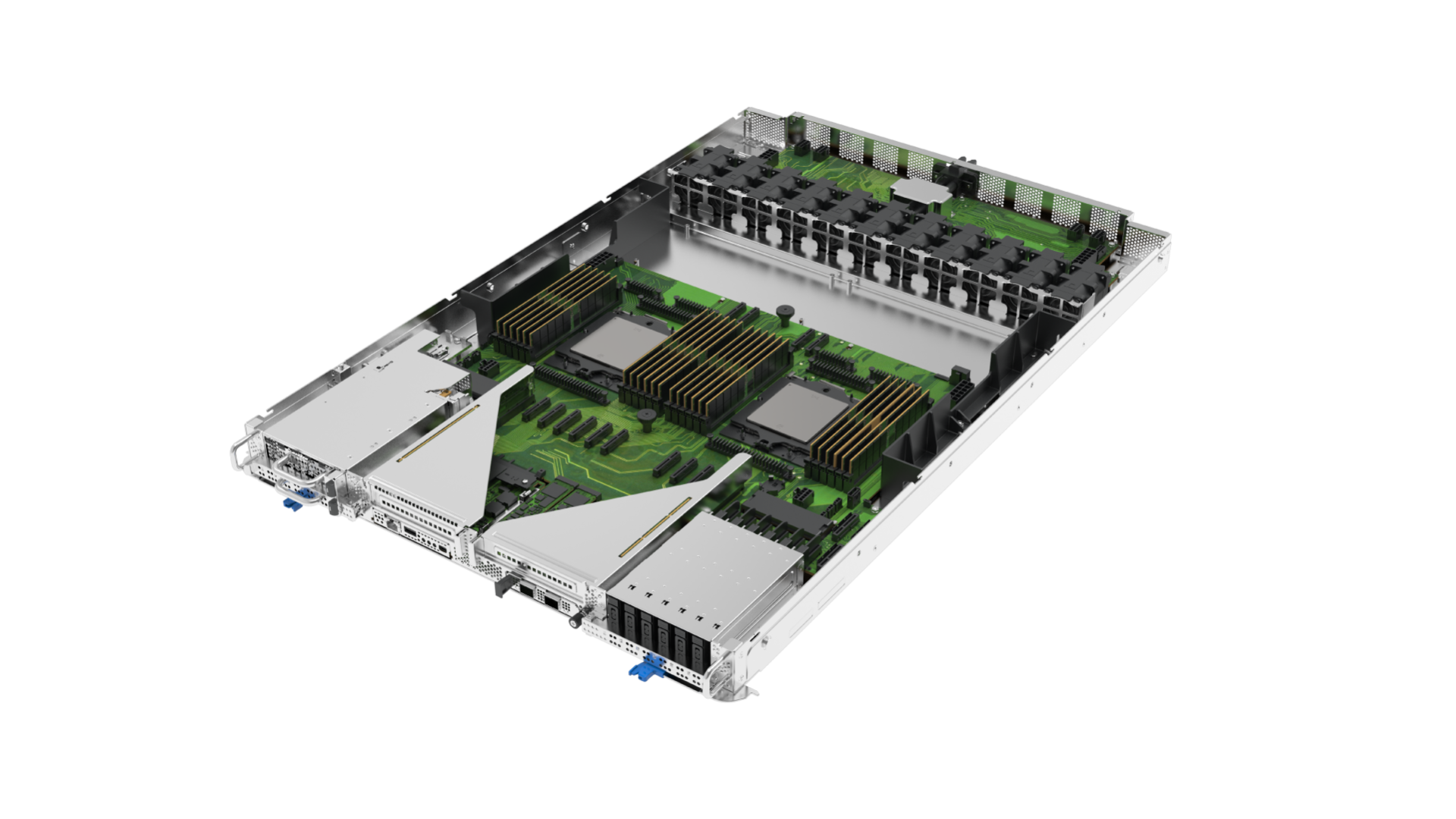

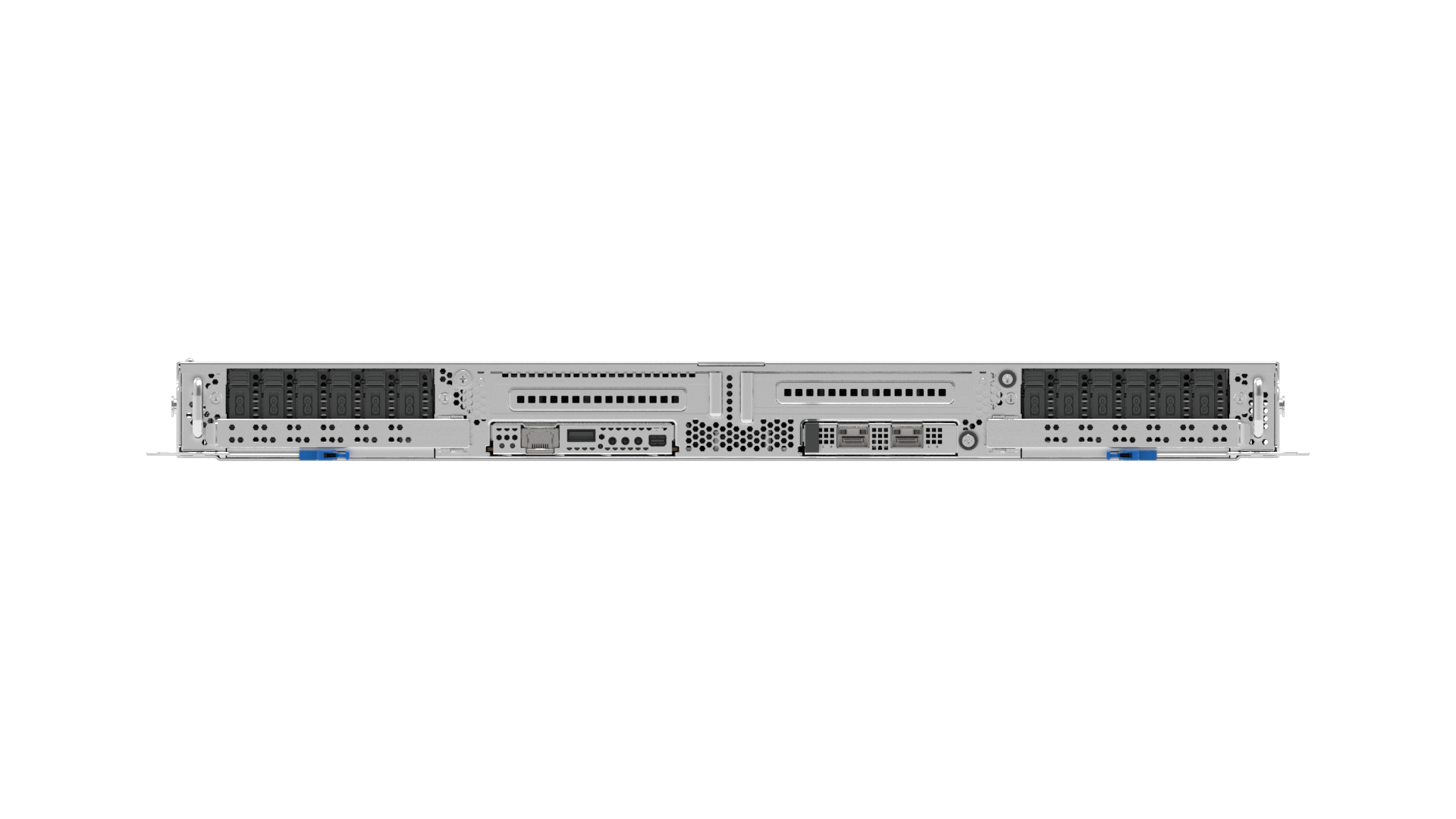

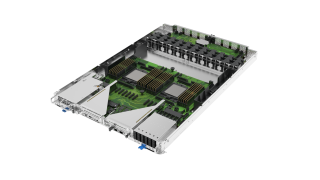

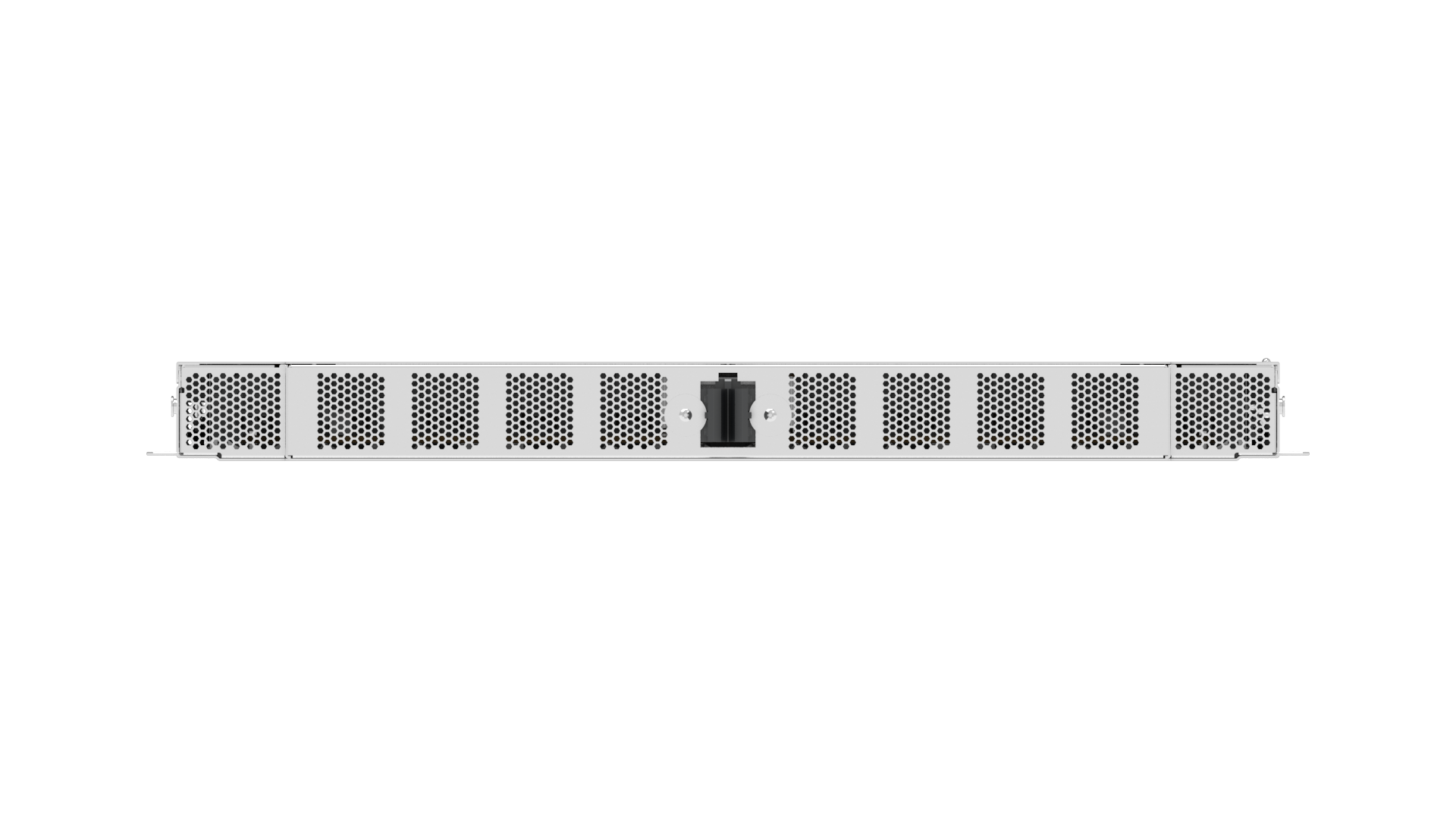

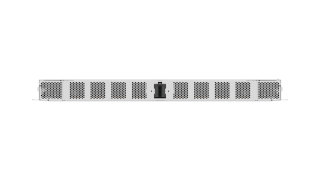

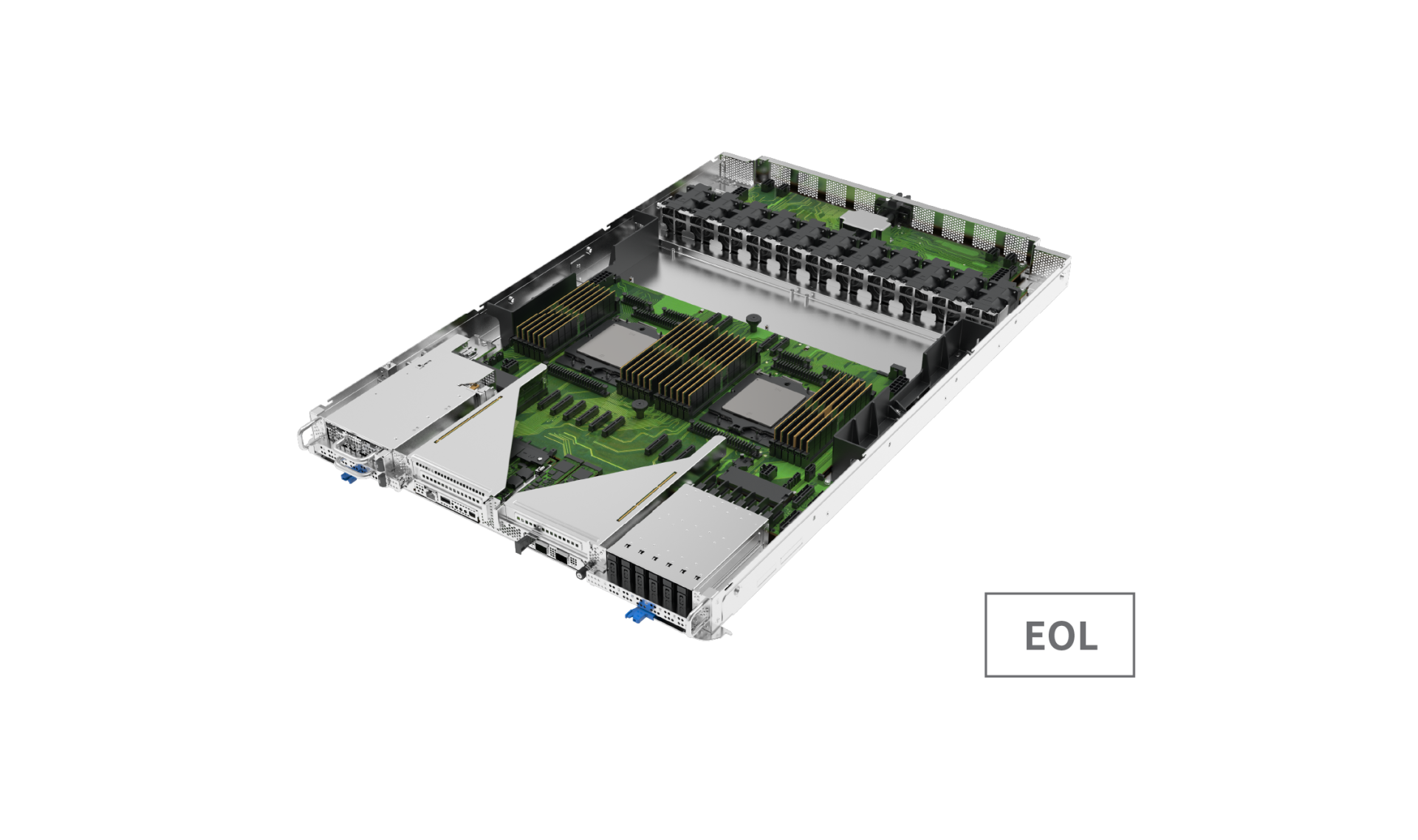

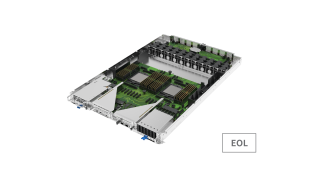

SV1121A

AMD 1 OU Modular Server

AMD EPYC™ Platform Solution
12-Channel RDIMM DDR5, 24 x DIMMs
Support E1.S Drives
Up to 4 x PCIe 5.0 x16 Slots
Air/Liquid Cooling Solution

Share：

Overview
Spec

Application

Hyperscale Data Center

Enterprise Application Server

High Performance Computing

AI and Machine Learning

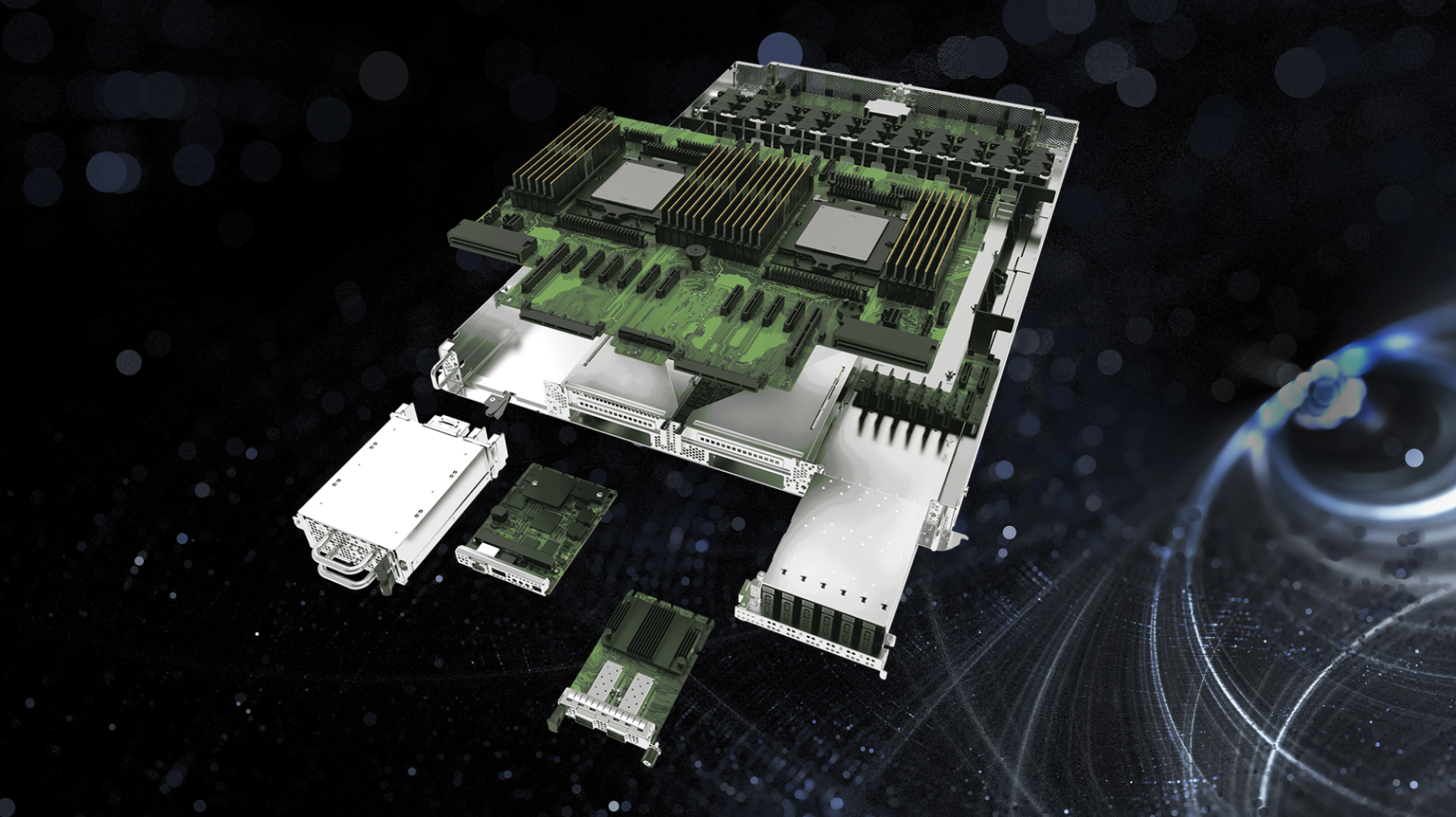

Modular Design to Create Multiple Systems

Ingrasys develops a game-changing approach to break down the legacy servers into reusable modular components, and mix and match them to build up multiple new systems. This approach creates unlimited possibilities and allows for future scalability across different generations of platforms.

One Module, Maximum Flexibility

Reuse the modules as much as possible. When the system needs to be updated, only replace one module with a new one with no other changes required.

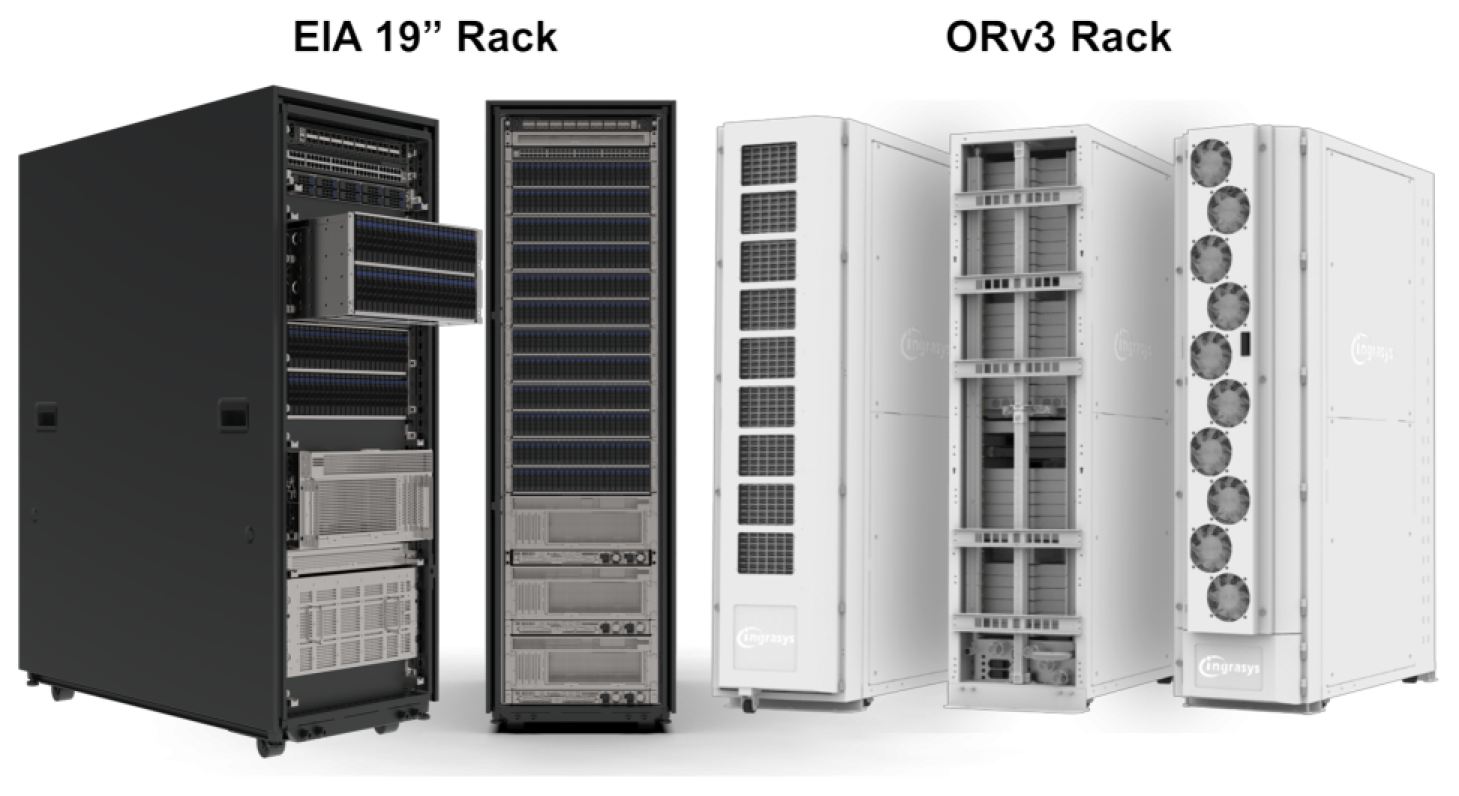

Support Enterprise EIA 19" and ORv3 Racks

Use the same modular components differently to configure systems respectively for Enterprise EIA 19” rack and Open Compute ORv3 rack.

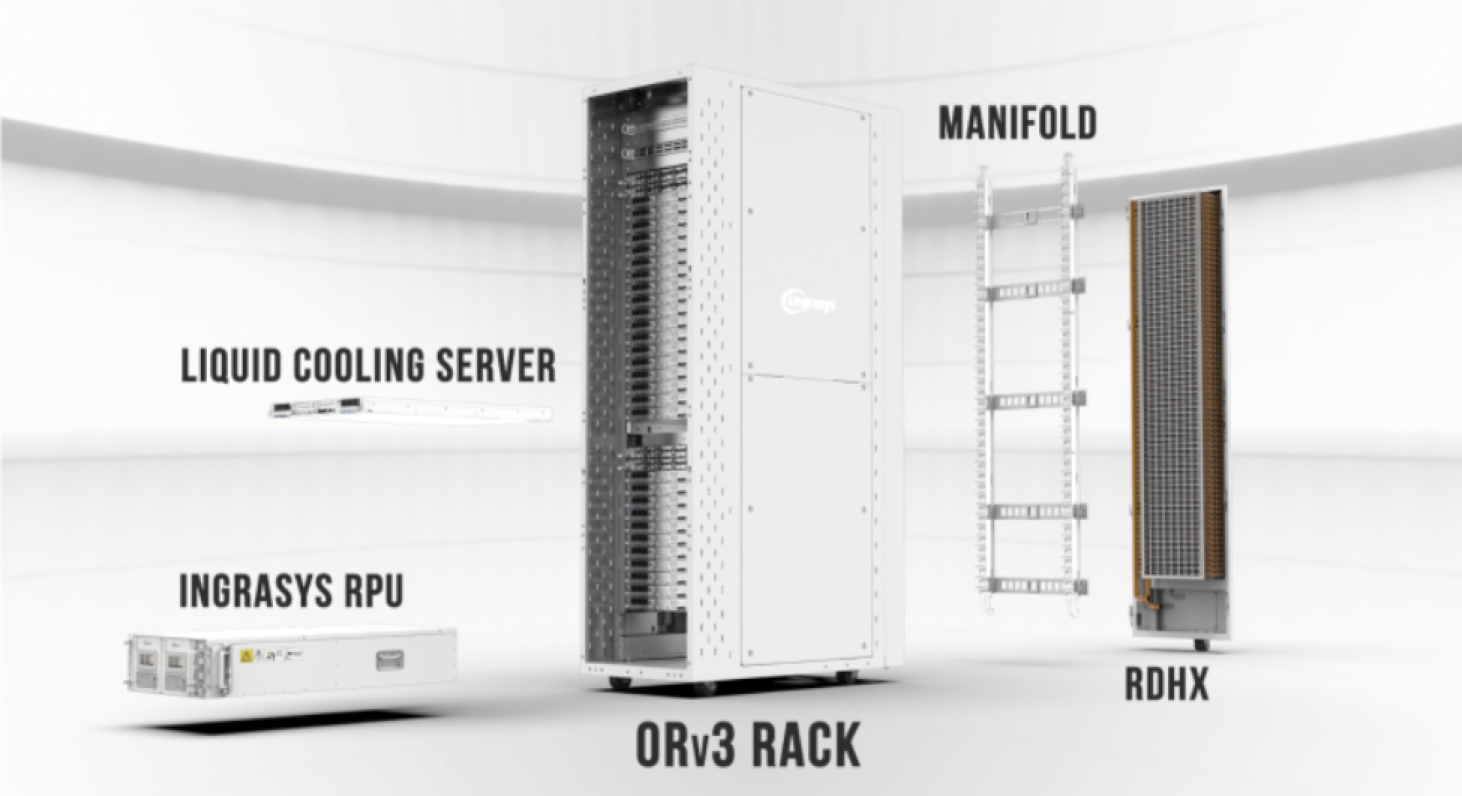

Rack-integrated Liquid Cooling Solution

Ingrasys OCP-compliant server supports liquid cooling technology to provide higher cooling efficiency, which allows high-power CPU and GPU to run at their full performance while reducing significant energy consumption.

Processor	2 x 4th Gen AMD EPYC™ Server Processors
Memory	24 x DDR5 RDIMMs, 12-Channel per CPU, up to 4800 MT/s at 1DPC 2 x E3.S CXL Memory Modules (SKU 3)
Storage	2 x 22110 M.2 Boot Drives SKU 1: 12 x E1.S SSDs SKU 2: 6 x E1.S SSDs SKU 3: 6 x E1.S SSDs
Expansion Slots	SKU 1 & 3: 2 x PCIe 5.0 x16 FHHL Slots 1 x PCIe 5.0 x16 OCP NIC 3.0 SKU 2: 2 x PCIe 5.0 x16 FHHL Slots 2 x PCIe 5.0 x16 LP/HHHL with Riser Card Slots 1 x PCIe 5.0 x16 OCP NIC 3.0
Security & Management	DC-SCM 1.0 (Root of Trust, TPM, AST2600 BMC)
Cooling Solution	Air: CPU Remote Heatsink, 11 x 4056 Dual Rotor System Fans (N+1 Redundant) Liquid: CPU Cold-Plates to Rack Quick-Disconnects, 7 x 4056 Dual Rotor System Fans (N+1 Redundant)
Power Supply	Centralized 48V Bus Bar with PDB
I/O Ports	1 x 1GbE/RJ45 Management Port 1 x USB 2.0 1 x Mini Display Port 1 x Reset Button 1 x Power Button with LED 1 x UID Button with LED
Chassis Dimensions (H x W x D)	1.75"x 21.14"x 31.76"/ 44.7mm x 537.0mm x 806.7mm
