SV2121A
Intel 2 OU Modular Server12-Channel RDIMM DDR5, 24 x DIMMs
Up to 10 x PCIe 5.0 x16 Slots
Air/Liquid Cooling Solution

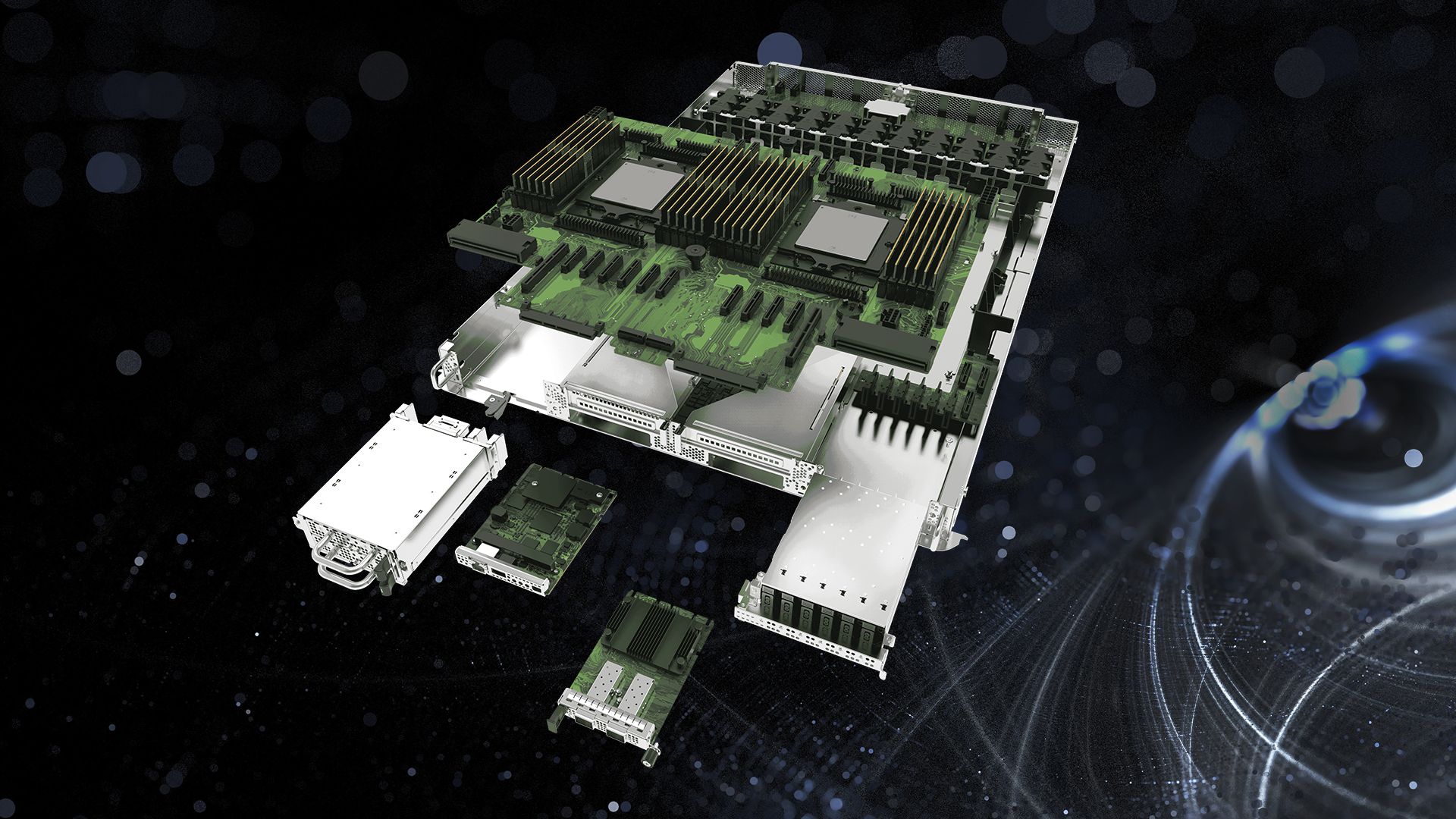

Modular Design to Create Multiple Systems
One Module, Maximum Flexibility

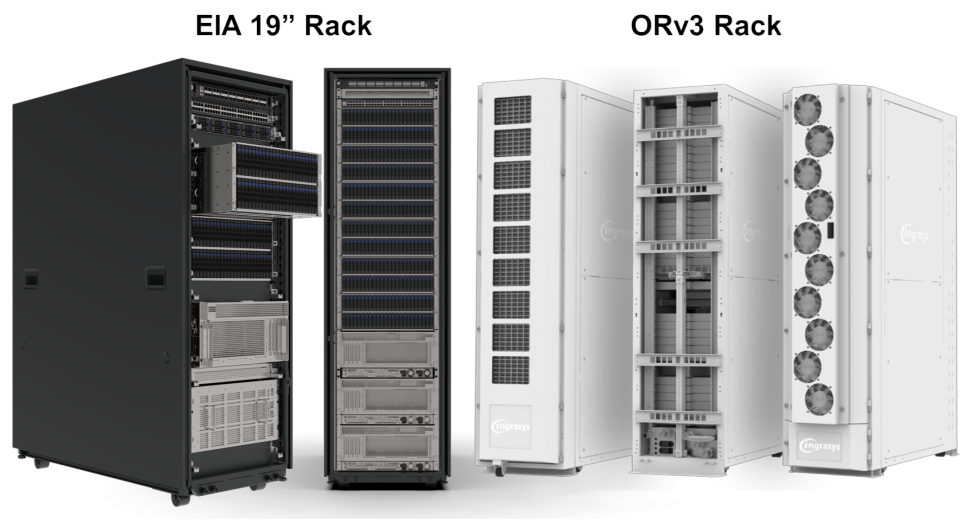

Support Enterprise EIA 19" and ORv3 Racks

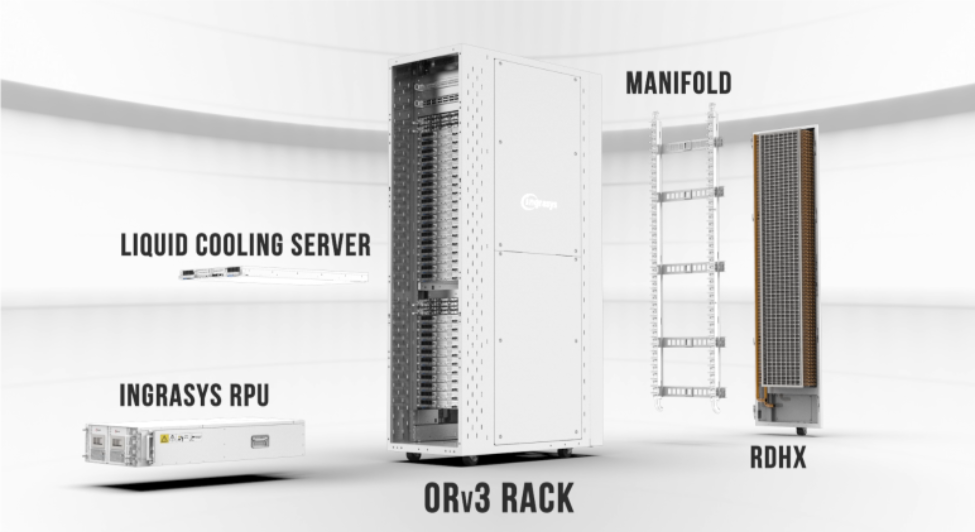

Rack-integrated Liquid Cooling Solution
Processor | 2 x 4th Gen AMD EPYC™ Server Processors |
Memory | 24 x DDR5 RDIMMs, 12-Channel per CPU, up to 4800 MT/s at 1DPC |
Expansion Slots |
2 x PCIe 5.0 x16 FHHL Slots |
Security & Management | DC-SCM 1.0 (Root of Trust, TPM, AST2600 BMC) |
Cooling Solution | Air: CPU Remote Heatsink, 5 x 8056 Dual Rotor System Fans (N+1 Redundant) Liquid: CPU Cold-Plates to Rack Quick-Disconnects, 4 x 8056 Dual Rotor System Fans (N+1 Redundant) |
Power Supply | Centralized 48V Bus Bar with PDB |

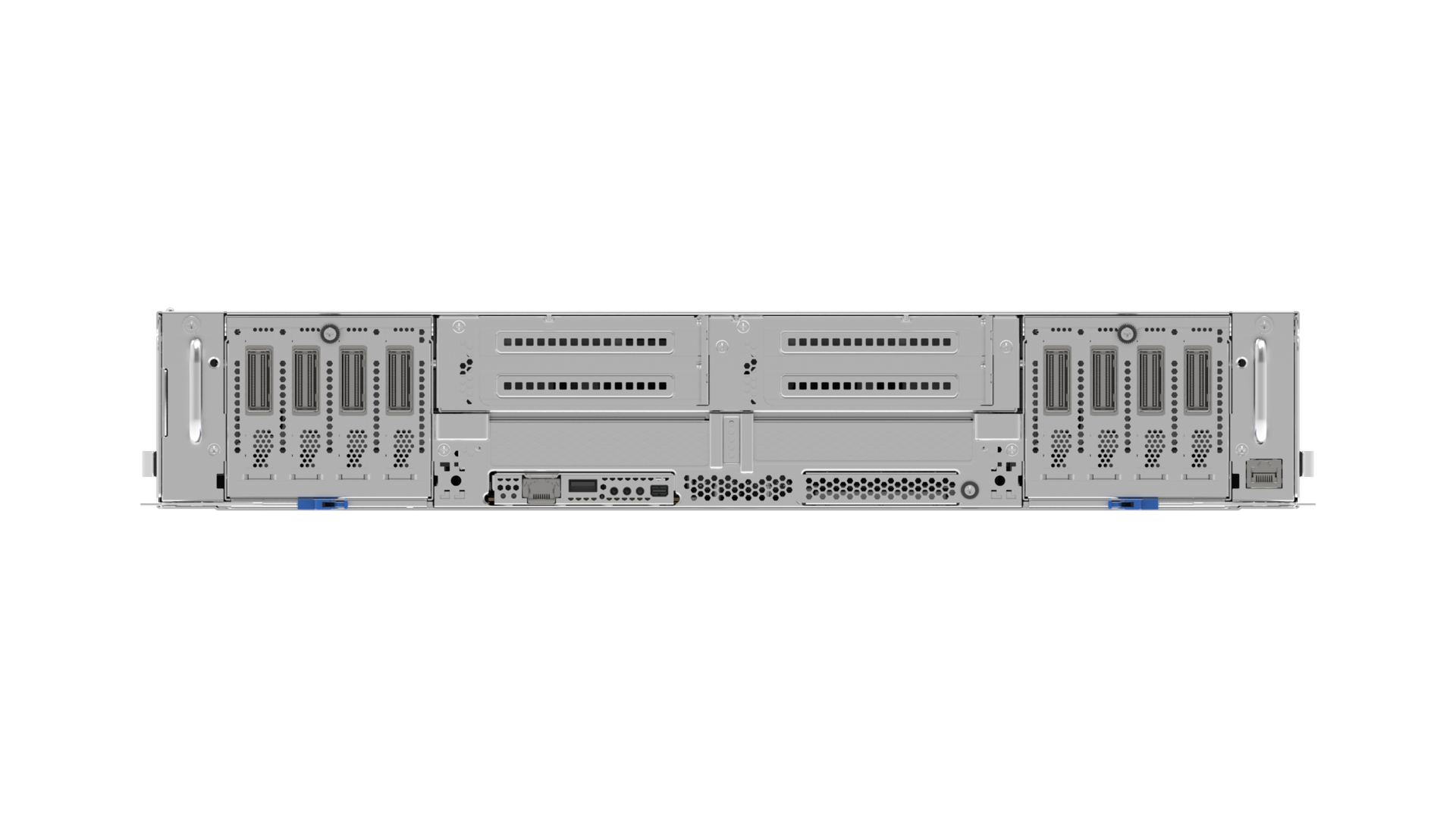

I/O Ports | 1 x 1GbE/RJ45 Management Port 1 x USB 2.0 1 x Mini Display Port 1 x Reset Button 1 x Power Button with LED 1 x UID Button with LED |
Chassis Dimensions (H x W x D) |
3.68"x 21.14"x 31.76"/ 93.5mm x 537.0mm x 806.7mm |
