Immersion Cooling

Stay cool and quiet





Ingrasys single-phase immersion cooling tank, featuring an integrated CDU and control system, supports optimal cooling capacity and unprecedented compute density compared to traditional air cooling. Its modular design and customized chamber size allows location flexibility and the automatic top gate make service easier. With a full turnkey solution to bundle with Ingrasys RU/OU servers that fit your needs, the cooling tank is the proven, energy-efficient solution to meet the growing cooling demand and enhance sustainability through reductions in carbon footprint.




Advantage

Higher Power Density



Immersion cooling eliminates the need for fans, enabling components to be placed much closer together and allowing for more compact and densely packed configurations in data centers.

Optimal Cooling Capacity



Immersion cooling offers an optimal cooling capacity and a much lower PUE because the entire component surface is in contact with the cooling medium, which reduces the risk of hotspots in high-density computing environments.

Flexible Deployment



The modular tank-based design features customized chamber size, allows for rapid deployment regardless of location. This is particularly beneficial in environments with space constraints or high computational demands.

a2pre-q4t5w (3)

Anti-Vibration



With all components are immersed in the fluid, the system operates silently, leading to a data center environment free from acoustic noise and vibration impact.

Product Specification

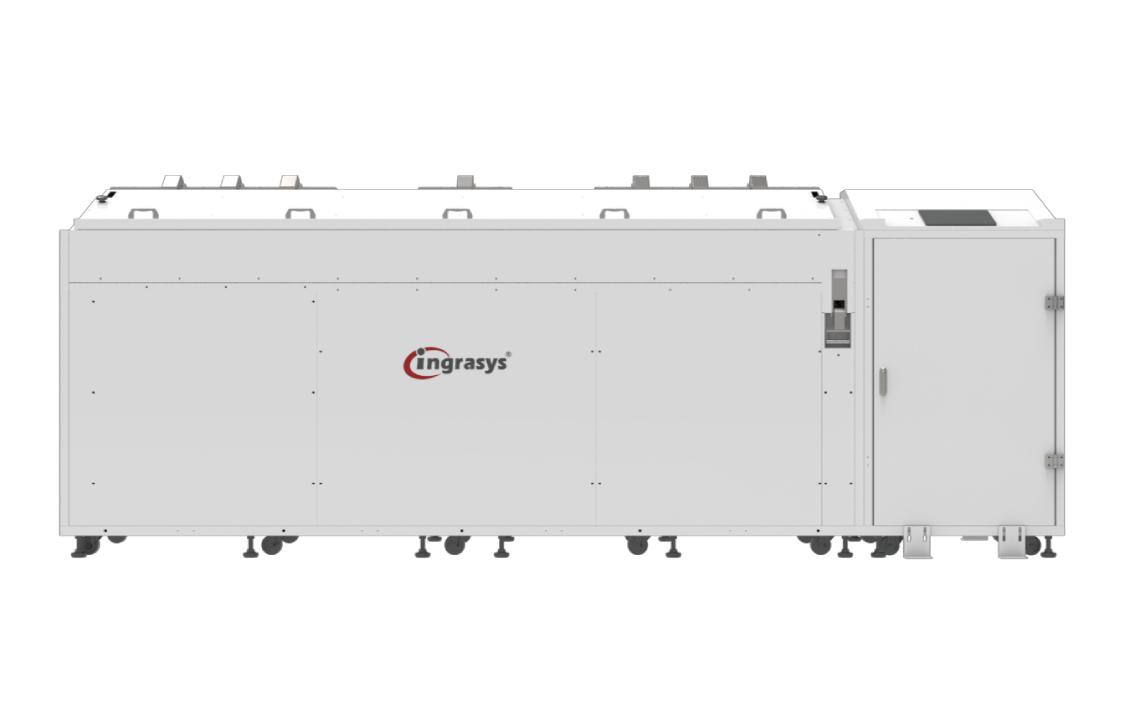

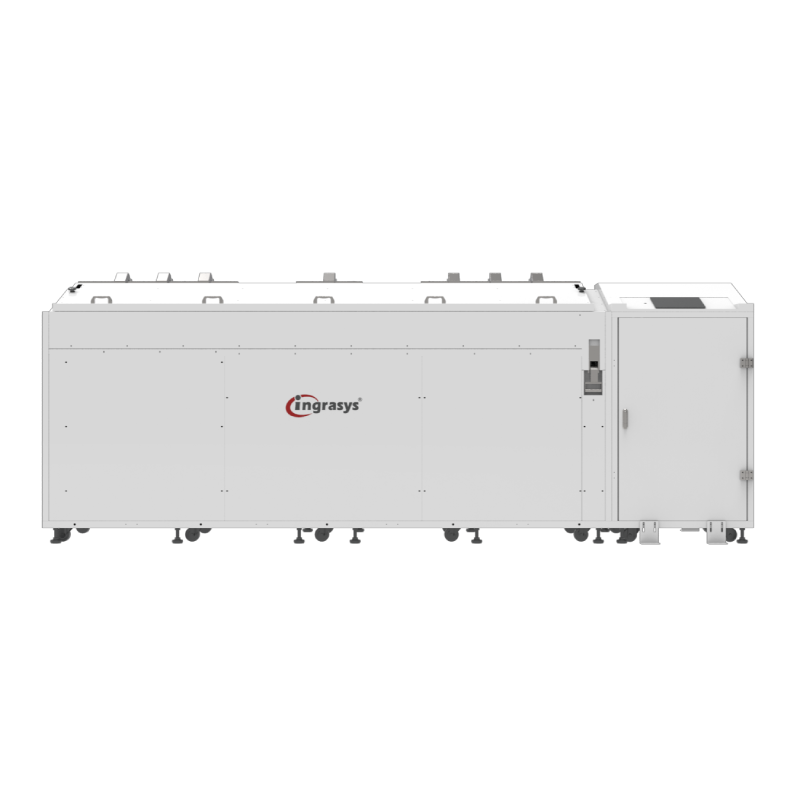

tank5
 Modular Oriented Single-Phase Tank
Cooling Mechanism Single Phase
Tank Size 830mm x 4000mm x 1560mm
(D x W x H, front height 1220mm)
Cooling Capability 120 ~180 kW
Computing Node RU / OU 21" Server Compatible
Redundancy  1+1 Pumps
Serviceability
  • Modular Device Maintenance,
  • Top Access IT Equipment,
  • Top-lid Automation Mechanism
